Rail & Stile

ELEGANT RAIL & STILE DOORS

Our rail & stile wood doors are built for the traditionalist. Constructed using the mortise and tennon style system, the rail & stile door comes in a select few standard options like long or short panel, raised or recessed panel and each option is available in paint grade or stain grade. Available in a selection of premium woods such as Hemlock, Western Red Cedar and Mahogany. The rail & stile door is sure to add a warm, deep richness to the exterior of your home.

DOOR STYLES

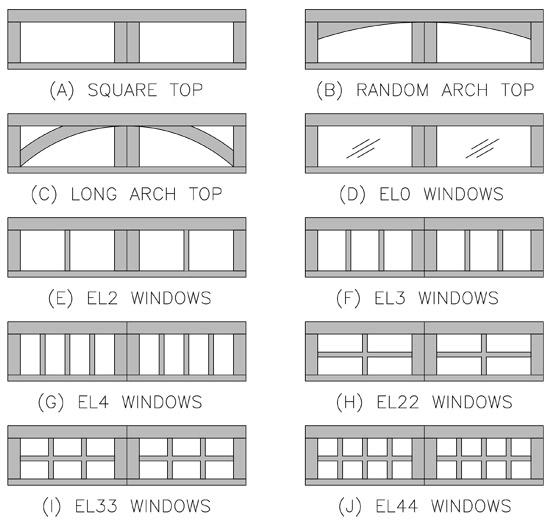

Window Styles

1/8” Clear Double Strength Billet Glass
Many other types of glass are available including insulated options
2” Wide Mullions
Faux Divide is standard
True Divide (Thru and Thru) available

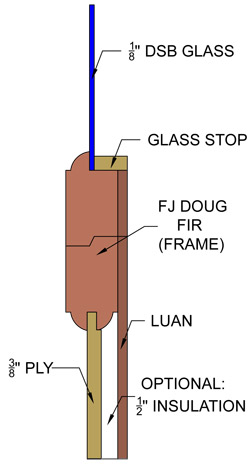

RAIL & STILE SPECIFICATIONS

2 Layer Door

Paint Grade (primed white)

Back (layer 1): 1 4″ Luan
Frame (layer 2): 1- 3 8″ FJ(FInger Joint) Hem Fir Deep Plowed
Insulation: 1 2″ Polystyrene is optional and considered an upgrade
Panels (option 1): 3 8″ Baltic Birch recessed panels
Panels (option 2): 1 2″ Extira raised panels
Stiles: Single center stiles

Stain Grade (unfinished)

Back (layer 1): 1 4″ Luan
Frame (layer 2): 1- 3 8″ Clear Vertical Grain Hemlock Deep Plowed
Insulation: 1 2″ Polystyrene is optional and considered an upgrade
Panels (option 1): 3 8″ Aquatek Marine Ply recessed panels
Panels (option 2): 5 8″ Edge-Glued Hemlock raised panels
Stiles: Single center stiles

Frame Material

Clear Western Red Cedar or Mahogany

Options

Frame (Layer 1): Hemlock (standard), Cedar, and Mahogany
Panels: Hemlock (standard), Cedar, and Mahogany

Manuals and Specifications

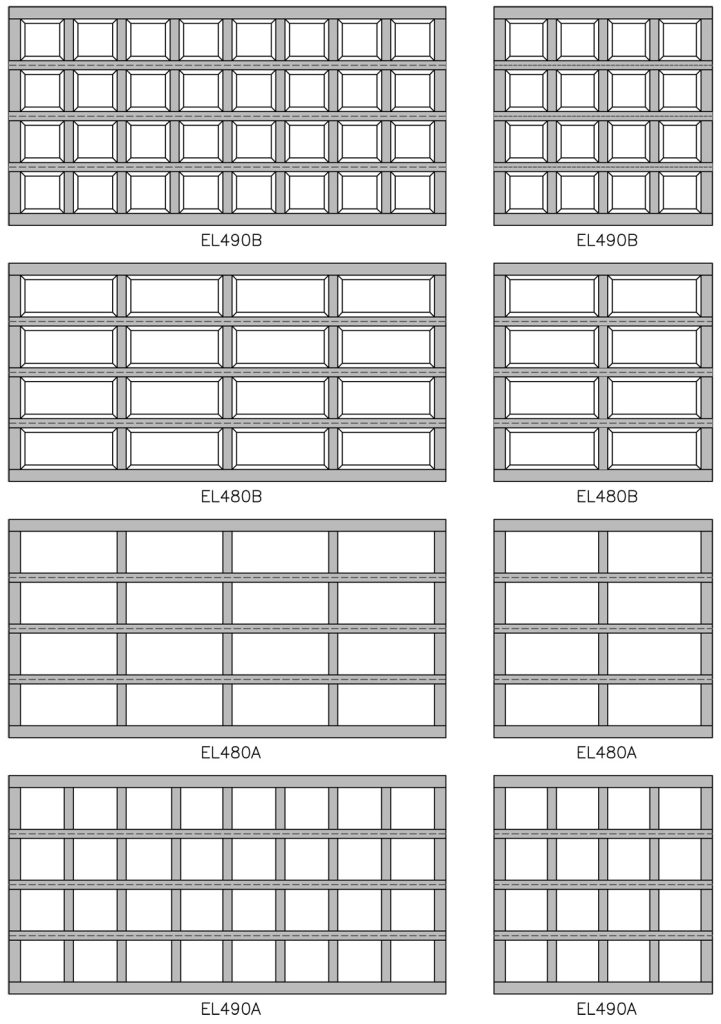

Rail & Stile Panel Styles

Rail & Stile Specs

Rail & Stile 2 Layer Door Specs
